Double Layer Roll Forming Machine IBR/Q-Tile Sheet in Africa Market

Name: Double Layer Roll Forming Machine IBRQTile Sheet in Africa Market
Brand: NEXUS MACHINERY
Price: 13000 USD

Quality Double Layer Roll Forming Machine IBR/Q-Tile Sheet in Africa Market for sale

Payment Terms : L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability : 30 Sets / Months

Brand Name : NEXUS MACHINERY

Model Number : CZNM-686/828

Certification : CE, ISO

Place of Origin : China

MOQ : 1 SET

Price : $13000-18000/SET

Delivery Time : 40 days

Packaging Details : Need one 20GP container to load

Model NO. : CZNM-686/828

Product Name : Double Layer Roll Forming Machine IBR/Q-Tile Sheet in Africa Market

Raw Material : PPGI Sheet

Thickness Range : 0.3-0.6mm

Machine Power : 7.5kw+4kw

Diameter of Shaft : 76mm

Speed : 10-15m/Min

Control System : PLC Computer

Shearing System : Hydraulic

Machine Weight : About 7 Tons

Warranty : 12 Months

Afer-Sales Service : Engineer Is Availble to Overseas

Trademark : NEXUS MACHINERY

Transport Package : Plastic Film & Steel Wire Fixed

Specification : 7500mm*1500mm*1500mm(L*W*H)

Origin : China

HS Code : 8455221000

Package size per unit product : 750.00cm * 150.00cm * 160.00cm

Gross weight per unit product : 7000.000kg

Trade Guarantee : From payment to delivery, we guarantee your trading security without charges.

Shipping Cost : Freight Cost Calculator

Port : Tianjin, China

Tile Type : Colored Steel

Condition : New

Customized : Customized

Usage : Roof, Wall

Transmission Method : Electric

Contact Now

Double Layer Roll Forming Machine IBR/Q-Tile Sheet in Africa Market

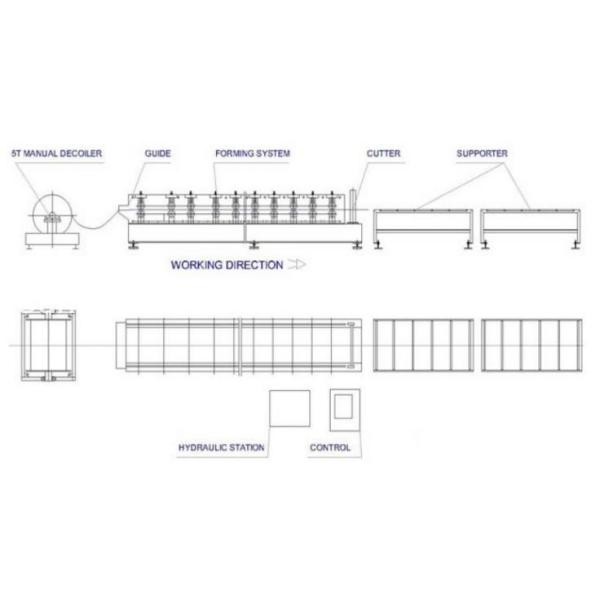

1. Processing flow diagram of machine:
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table
Double Layer Roll Forming Machine IBR/Q-Tile Sheet in Africa Market

2. Technical parameters:

Article No.	Item Name	Specification
1	Width of feeding material	1200 mm coil sheet
2	Thickness of feeding material	0.3-0.6 mm coil sheet
3	Roller station	18/16 stations
4	Shaft Diameter	76 mm
5	Productivity	10-15 m/min
6	Rollers' material	45# steel with 0.05 mm chrome
7	Shaft material	45# steel with 0.05 mm chrome
8	Weight	5 tons
9	length	6.5 m
10	Voltage	380V 50Hz 3phases
11	Control	PLC
12	Decoiler	7 tons
13	Motor	5.5 kw
14	Driving way	Chain transmission
15	Chain size	1 inch
16	Cutting system	Hydraulic cutter

3. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
